Key Features & Advantages

• High sensitivity via rare earth fluorescent labels

• Fast results (3–15 min) with no need for separate diluents (especially for cardiac markers)

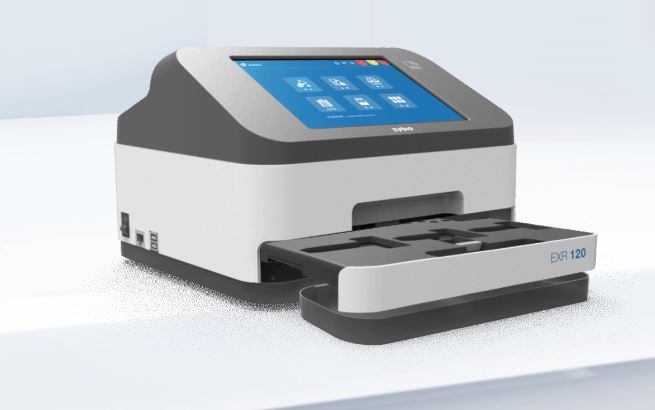

• Portable & compact (3.2 kg) with intuitive touchscreen; EXR 120 variant adds a 5000 mAh battery for power backup

• Intelligent automation: auto‑identify test cards, free (auto) calibration reads, real‑time status monitoring

Technical Specifications

• Principle: Fluorescence immunochromatography using rare-earth-element‑labeled microspheres for high sensitivity

• Channels: 3 simultaneous assay channels

• Sample Types: Whole blood, plasma, serum (some versions also list urine)

• Test Time: 3–15 minutes depending on analyte

• Incubation Temperature: Fixed at ~26 °C

• Display: 8″ color touchscreen

• Data Handling:

  • Built-in thermal printer + option for external printer

  • Connectivity via wired network + Wi‑Fi (model‑dependent) and LIS interface

  • Storage capacity: ~29,000 test records

• Power & Dimensions:

  • AC power 100–240 V, 50/60 Hz

  • Operating temp: 10–30 °C

  • Dimensions: ~275 × 250 × 186 mm

  • Weight: ~3.2–3.4 kg

???? Sample Handling & Test Modes

• Modes supported: Standard, Quick, Random, Batch, STAT

• One-step loading: Test cards auto-recognized (RFID/barcode) – load → test → results

• Built-in incubator: Maintains consistent temperature during tests

????️ Test Menu

Parameters are spread across several panels:

*asterisked assays often indicate additional or specific versions of analytes.
